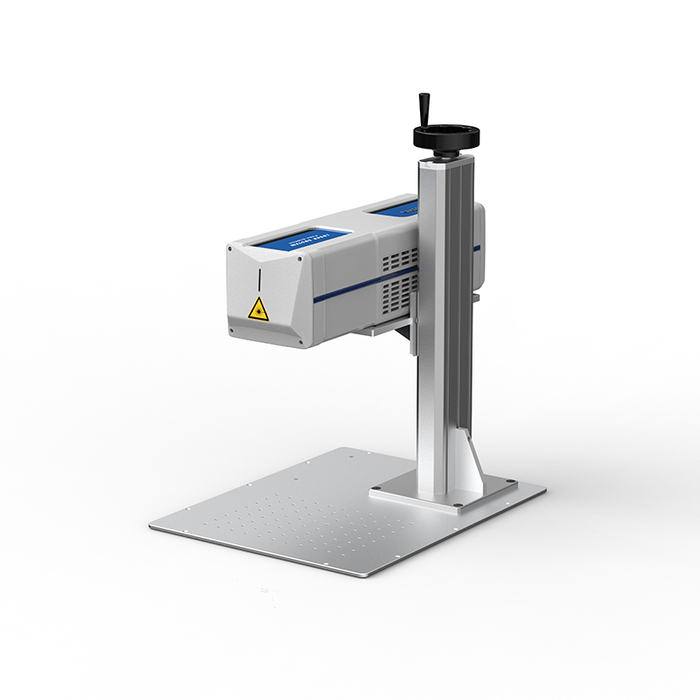

CD30 CO2 Desktop Laser Marker
Compact CO2 desktop laser marking system for permanent coding and engraving on packaging, wood, leather, acrylic and other non-metals.
CD30 CO2 Desktop Laser Marker
Compact CO2 desktop laser marking system for permanent coding and engraving on packaging, wood, leather, acrylic and other non-metals.
CD30 CO2 Desktop Laser Marker
CO2 Desktop Laser Marking Machine adopts advanced CO2 laser technology, specially designed for high-precision non-metal material marking applications. It delivers fast speed, clear marking results, and stable performance, making it an ideal solution for packaging, gifts, electronics, leather, wood, acrylic, glass, and other industries.
The machine features a compact desktop structure, saving workspace while providing flexible and convenient operation. Equipped with a high-speed galvanometer scanning system, it ensures smooth marking lines, fine details, and excellent efficiency for batch production.
With user-friendly software, easy maintenance, low operating cost, and long service life, the CO2 Desktop Laser Marking Machine is an efficient and economical choice for modern manufacturing and customized marking needs.
Core specification reference.
Final configuration depends on material, marking field, code size, cycle time and integration method.
| Model | CD30 / CD60 |
|---|---|
| Laser Power | 30W / 60W |
| Material of the Entire Unit | Engineering plastic + Anodic alumina structure |
| Type of Laser | Carbon Dioxide Laser Generator |
| Laser Wavelength | 10.6μm |
| Print Method | High-precision Two-dimensional Scanning Method |
| Marking Speed | ≤12000mm/s |
| Master Control | Highly Integrated Motherboard |
| Operating System | Android System |
| Cooling System | Air-cooled at Room Temperature |
| Spray Printing Line Type | Dot-and-vector All-in-one Printer (Capable of Printing Both Dot and Vector Graphics) |
| Reflector Size | Standard: 10mm |
| Spray Printing Range | Standard: 90mm × 90mm |
| Positioning Mode | Red Light Positioning, Red Light Focusing |
| Number of Characters to Carve | Any Row Within the Coding Range |
| Supported Languages | Simplified Chinese, Traditional Chinese, English, Korean, Russian, German, Spanish, French, Italian, Japanese, Portuguese, Turkish, Arabic, Persian, etc. |
| File Format | BMP/DXF/HPGL/JPEG/PLT |
| Barcode/QR Code | Code128A, Code128B, Code128C, Code39, Code93, Ean13, PDF417, 01 Code; QR, DM, GS1-DM, AztecCode, HanxinCode, DotCode, etc. |
| Power Supply | 220V |
| Maximum Power Consumption | ≤800W/4.5A |
| Net Weight of the Machine | 20KG |
| Optical Path Dimension | 587mm×186mm×170mm |
| Overall Dimensions | 615mm×315mm×691mm |
| Interface | USB2.0 |
| External Protection Rating | IP54 (Laser Galvanometer Lens Part) |
| Class of Pollution | 2 |
| Overvoltage Category | Ⅱ |
| Adaptation Temperature | 5-45℃ |
Glass & Ceramics
Batch and date engraving on glazed ceramic
Permanent batch and manufacturing data is engraved directly into a glossy ceramic surface.
Wood & Leather
Material and lot marking on tan suede leather
Material identification and lot data are permanently marked on a warm tan suede surface.
Wood & Leather
Grade and serial engraving on timber end grain
Grade and serial information is engraved directly across the growth rings of a solid timber block.
Glass & Ceramics
Lot and quality-control marking on stoneware
A lot code and QC result are engraved into a textured stoneware vessel without ink or labels.
Wood & Leather
Repeated thickness and lot coding on ivory suede
Thickness and lot data are repeated with consistent spacing on a light suede leather panel.
Wood & Leather
QR and lot engraving on a birchwood component
A compact traceability code and lot number are laser engraved on a small pale wooden component.
Questions about CD30 CO2 Desktop Laser Marker.
Review machine selection, integration, sample testing and service information before requesting a quote.
What materials can be marked with laser?
Fiber, UV and CO2 laser systems can mark metal, plastic, glass, paper, carton, cable, PCB and many packaging surfaces. The suitable laser type depends on the material and the required contrast.
Can laser marking create permanent codes?
Yes. Laser marking creates durable marks without ink. On many materials, the result is permanent, clear and suitable for traceability codes, serial numbers, logos and batch information.
Can you mark QR codes and barcodes?
Yes. Zertree machines can mark text, logos, QR codes, Data Matrix codes, barcodes, batch codes and expiry dates for packaging and industrial parts.
How do I choose the right laser marking machine?
Start with the material, code content, marking size, production speed and installation method. Zertree can then recommend fiber, UV, CO2, online, desktop, handheld or enclosed equipment.
What is the difference between fiber, UV and CO2 laser marking?
Fiber laser is commonly used for metal and some hard plastics. UV laser is suitable for low-heat, high-contrast marking on plastic, glass and packaging. CO2 laser is often used for paper, carton, wood, leather and some organic materials.
Can the machine connect with a production line?
Yes. Online laser coding machines can be integrated with conveyors, sensors, fixtures and production-line control systems for continuous flying marking.
Can I send samples before purchase?
Yes. You can send material samples and marking content. Zertree will test contrast, readability, marking speed and code quality before quotation.
What information should I provide for sample testing?
Please provide material type, surface treatment, marking size, code content, expected depth or contrast, production speed and any scanning requirements.
Can you help confirm code readability?
Yes. For QR codes, barcodes and traceability marks, sample testing can confirm contrast, size, readability and repeatability before machine selection.
Do you provide technical support and after-sales service?
Yes. Zertree provides machine selection support, sample verification, remote guidance, technical service and spare parts support for industrial marking projects.
How fast can Zertree review an RFQ?
For clear project information, the team usually reviews the request quickly and can help prepare a practical recommendation within 24 hours.
What should I include when requesting a quote?
Include your material, marking content, marking area, production speed, installation space, preferred machine style and sample photos if available.
Need a CD30 CO2 Desktop Laser Marker solution?
Send your material, marking content, marking size and production speed. Zertree will recommend the suitable CD30 CO2 Desktop Laser Marker configuration and sample testing plan.
