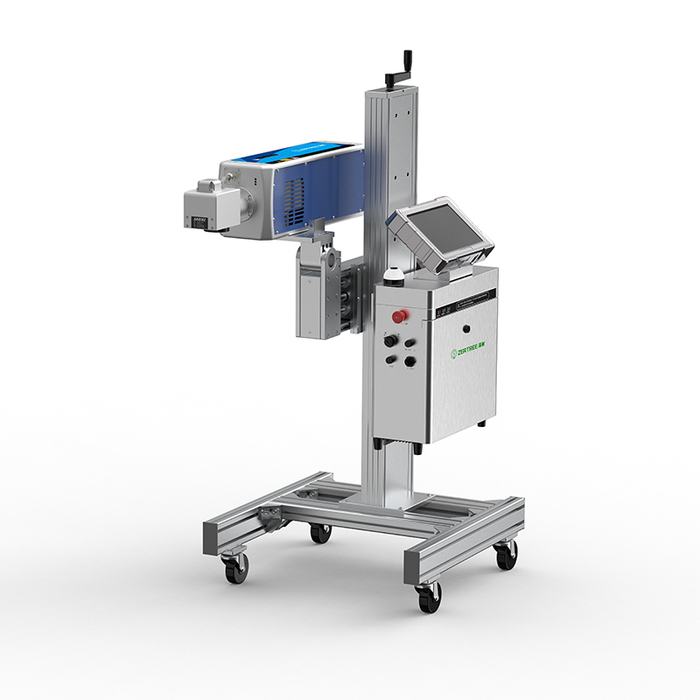

CF306-Ultra CO2 Laser Coding Machine
High-speed industrial CO2 laser coding system for continuous automated production lines, with marking speeds up to 18,000 mm/s.
CF306-Ultra CO2 Laser Coding Machine
High-speed industrial CO2 laser coding system for continuous automated production lines, with marking speeds up to 18,000 mm/s.
CF306-Ultra CO2 Laser Coding Machine
CF306-Ultra CO2 Laser Coding Machine

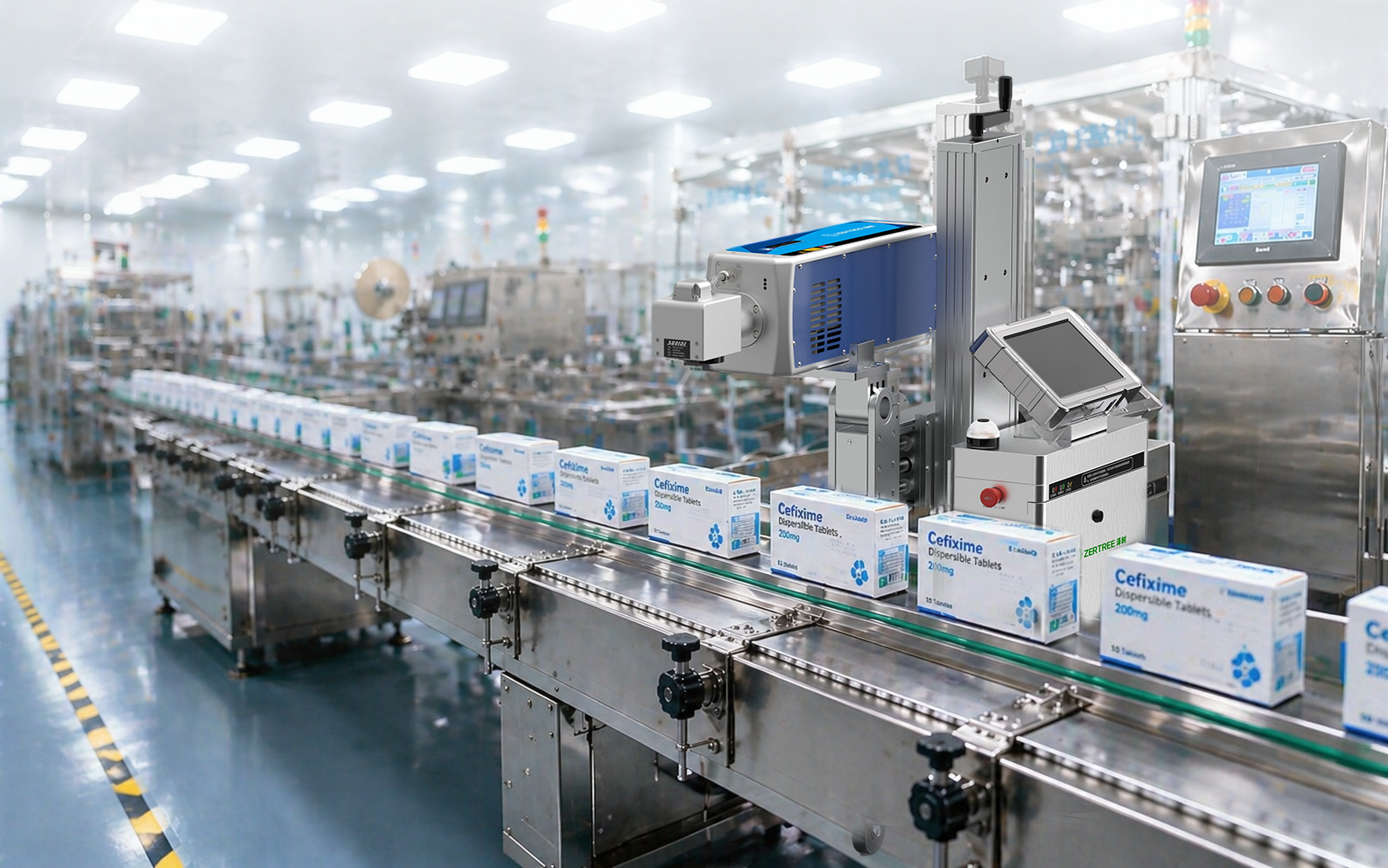

Equipped with a high-performance laser control system and a self-developed intelligent chip, the CF306-Ultra CO2 Laser Coding Machine delivers stable operation, fast coding speed, and is ideal for continuous use on high-speed automated production lines. With a maximum marking speed of up to 18,000 mm/s, it can easily meet the demands of high-volume and high-efficiency manufacturing.
The machine supports both standard communication protocols and customized communication protocols, enabling fast integration with MES, ERP, PLC, packaging equipment, and automated production lines. It provides intelligent coordinated control and helps modern factories achieve digital transformation and smart manufacturing upgrades.
Built with a high-computing processing core, it can quickly handle large data volumes, variable QR codes, barcodes, serial numbers, production dates, and complex graphics. Marking results are clear, precise, and consistently reliable for long-term industrial operation.
Core specification reference.
Final configuration depends on material, marking field, code size, cycle time and integration method.
| model | CF306-ultra/CF302-ultra/CF303-ultra/CF606-ultra/CF602-ultra/CF603-ultra |
|---|---|
| Material of the entire unit | Anodic alumina structure (light path), stainless steel (control box) |
| Type of Laser | Sealed Metal RF Carbon Dioxide Laser Generator |
| laser power | 30W/40W/60W |
| laser wave length | 10.6um/10.2um/9.3um |
| Print Method | High-precision two-dimensional scanning method |
| Marking speed | ≤18000mm/s |
| master control | Highly integrated motherboard, 10-inch external touchscreen, V5 operating system |
| operating system | Linux |
| coolant passage | Air-cooled at room temperature |
| Spray printing line type | Dot-and-vector all-in-one printer (capable of printing both dot and vector graphics) |
| Mirror size | Standard specifications: 30W-8.5mm / 60W-10mm |
| Spray printing range | Standard size: 90mm × 90mm; Maximum optional size: 450mm × 450mm |
| location mode | Directional red light positioning with automatic focusing |
| Number of characters to carve | Any row within the coding range |
| Production Line Speed | 0-300m/min (The exact speed depends on the product material and print content) |
| form of a written or printed character | Simplified Chinese, Traditional Chinese, English, Korean, Russian, German, Spanish, French, Italian, Japanese, Portuguese, Turkish, Arabic, Persian, and more |
| file format | BMP/DXF/HPGL/JPEG/PLT |
| Barcode/QR Code | Code128A, Code128B, Code128C, Code39, Code93, EAN13, PDF417, 01 Code, QR, DM, GS1-DM, AztecCode, HanxinCode, DotCode, etc. |
| source | 220V |
| Maximum power consumption | 30W≤800W / 60W ≤1700W |
| Net weight of the machine (main unit + control box) | 30W-33kg/60W-44kg |
| Optical path dimension | 30W:758mmX177mmX146mm / 60W: 928mmX218mmX194mm |
| Control box dimensions | 403mmX383mmX160mm |
| Interface | RS-232C/USB2.0/Ethernet/I/O |
| External protection rating | IP54 (laser vibration lens section) |
| class of pollution | 2 |
| Overvoltage Category | Ⅱ |
| Adaptation Temperature | 5-45℃ |
Paper & Packaging
Product and lot coding on a corrugated carton
An English product identifier, lot code and QR symbol are marked directly on kraft corrugated board.
Glass & Ceramics
Date and lot coding on an amber glass bottle
A production date and traceability lot are permanently marked on curved amber glass.
Glass & Ceramics
Manufacturing-date coding on a frosted glass bottle
Fine date and lot information remains legible on a translucent frosted bottle.
Questions about CF306-Ultra CO2 Laser Coding Machine.
Review machine selection, integration, sample testing and service information before requesting a quote.
What materials can be marked with laser?
Fiber, UV and CO2 laser systems can mark metal, plastic, glass, paper, carton, cable, PCB and many packaging surfaces. The suitable laser type depends on the material and the required contrast.
Can laser marking create permanent codes?
Yes. Laser marking creates durable marks without ink. On many materials, the result is permanent, clear and suitable for traceability codes, serial numbers, logos and batch information.
Can you mark QR codes and barcodes?
Yes. Zertree machines can mark text, logos, QR codes, Data Matrix codes, barcodes, batch codes and expiry dates for packaging and industrial parts.
How do I choose the right laser marking machine?
Start with the material, code content, marking size, production speed and installation method. Zertree can then recommend fiber, UV, CO2, online, desktop, handheld or enclosed equipment.
What is the difference between fiber, UV and CO2 laser marking?
Fiber laser is commonly used for metal and some hard plastics. UV laser is suitable for low-heat, high-contrast marking on plastic, glass and packaging. CO2 laser is often used for paper, carton, wood, leather and some organic materials.
Can the machine connect with a production line?
Yes. Online laser coding machines can be integrated with conveyors, sensors, fixtures and production-line control systems for continuous flying marking.
Can I send samples before purchase?
Yes. You can send material samples and marking content. Zertree will test contrast, readability, marking speed and code quality before quotation.
What information should I provide for sample testing?
Please provide material type, surface treatment, marking size, code content, expected depth or contrast, production speed and any scanning requirements.
Can you help confirm code readability?
Yes. For QR codes, barcodes and traceability marks, sample testing can confirm contrast, size, readability and repeatability before machine selection.
Do you provide technical support and after-sales service?
Yes. Zertree provides machine selection support, sample verification, remote guidance, technical service and spare parts support for industrial marking projects.
How fast can Zertree review an RFQ?
For clear project information, the team usually reviews the request quickly and can help prepare a practical recommendation within 24 hours.
What should I include when requesting a quote?
Include your material, marking content, marking area, production speed, installation space, preferred machine style and sample photos if available.
Need a CF306-Ultra CO2 Laser Coding Machine solution?
Send your material, marking content, marking size and production speed. Zertree will recommend the suitable CF306-Ultra CO2 Laser Coding Machine configuration and sample testing plan.
