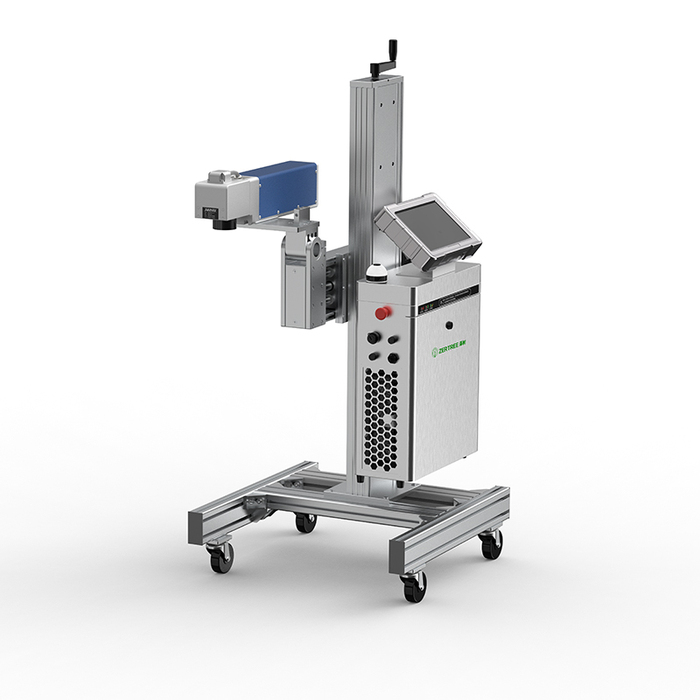

FF20-Ultra Fiber Laser Coding Machine
High-speed permanent coding for production lines

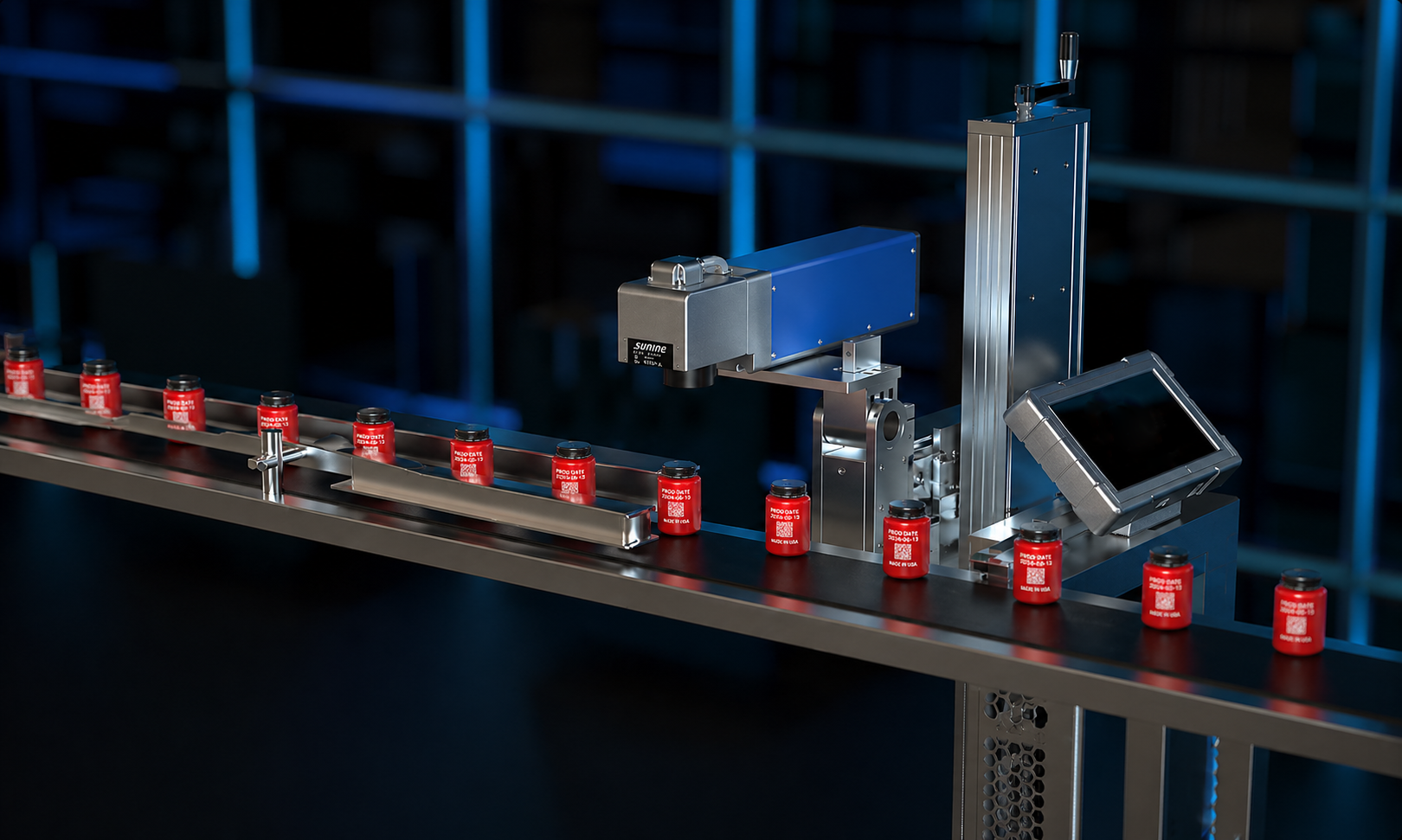

The FF20-Ultra Fiber Laser Coding Machine combines a fiber laser source with an advanced galvanometer scanning system to provide clear, permanent codes at high production speeds. Marking speed reaches up to 18,000 mm/s, helping the system keep pace with continuous, high-volume manufacturing lines.
A high-precision intelligent control circuit supports stable operation and consistent marking quality. The resulting codes are resistant to wear and tampering, making the machine suitable for product identification, anti-counterfeiting and long-term traceability.
Reliable operation with low maintenance
The air-cooled platform is designed for straightforward operation, long service life and low routine maintenance. A 10-inch external touchscreen and the Linux-based V5 operating system make it easy to manage text, serial numbers, barcodes, QR codes, DataMatrix codes and production data.

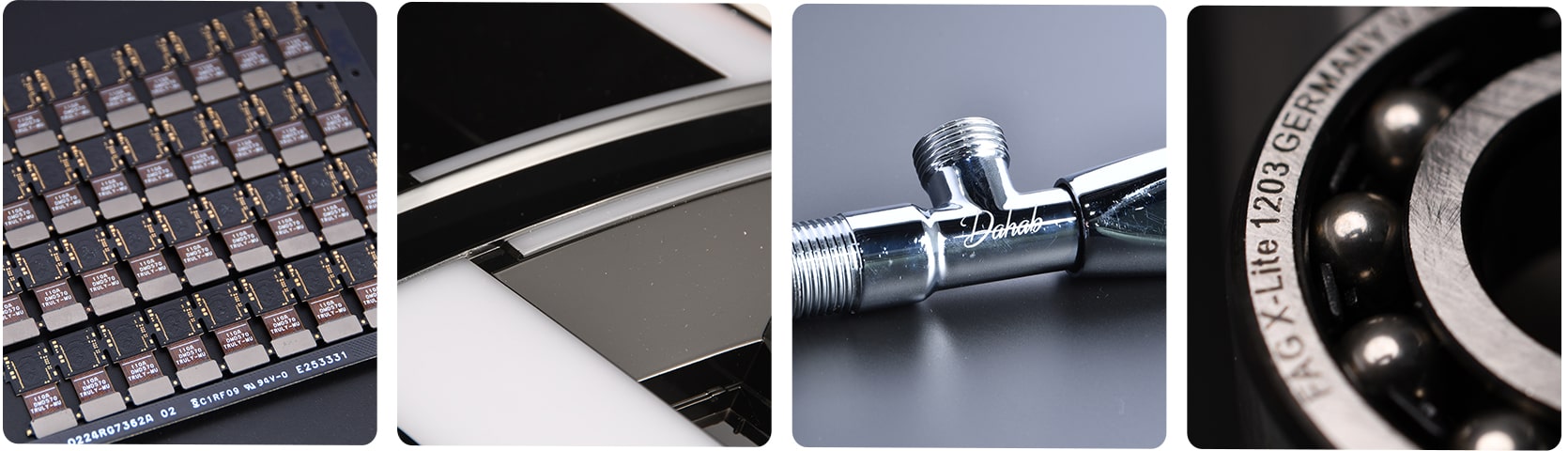

Typical materials and applications
The FF20-Ultra is designed primarily for stainless steel, aluminum, iron, copper, brass, anodized aluminum and other metals. Depending on the material, it can also create high-contrast marks on selected hard plastics, coated surfaces and industrial components.
Typical applications include automotive and electronic parts, tools, metal packaging, nameplates, fittings and production-line components that require permanent dates, batch numbers, serial numbers, logos or traceability codes.
Core specification reference.
Final configuration depends on material, marking field, code size, cycle time and integration method.
| Model | FF20-ultra / FF30-ultra / FF50-ultra / FF100-ultra |
|---|---|
| Laser power | 20W / 30W / 50W / 100W |
| Unit material | Anodized aluminum structure (optical path); stainless steel control box |
| Laser type | Fiber laser generator |
| Laser wavelength | 1064 nm |
| Printing method | High-precision two-dimensional scanning |
| Marking speed | ≤ 18,000 mm/s |
| Main control | Highly integrated motherboard, 10-inch external touchscreen, V5 operating system |
| Operating system | Linux |
| Cooling system | Air-cooled at room temperature |
| Line type | Dot-and-vector all-in-one; supports dot and vector graphics |
| Scanning mirror specification | 8.5 mm standard |
| Marking range | 110 × 110 mm standard; up to 600 × 600 mm optional |
| Positioning | Directional red-light positioning with automatic focusing |
| Character capacity | Any number of rows within the marking range |
| Production line speed | 0–300 m/min (depends on material and print content) |
| Supported languages | Simplified Chinese, Traditional Chinese, English, Korean, Russian, German, Spanish, French, Italian, Japanese, Portuguese, Turkish, Arabic, Persian and more |
| File formats | BMP / DXF / HPGL / JPEG / PLT |
| Barcode and 2D codes | Code128A/B/C, Code39, Code93, EAN13, PDF417, QR, DM, GS1-DM, AztecCode, HanxinCode, DotCode and more |
| Power supply | 220V |
| Maximum power consumption | ≤ 400W / ≤ 600W / ≤ 800W |
| Net weight (main unit + control box) | 31 kg |
| Optical path dimensions | 458 × 83 × 111 mm |
| Control box dimensions | 492 × 383 × 160 mm / 522 × 460 × 160 mm |
| Interfaces | RS-232C / USB 2.0 / Ethernet / I/O |
| External protection rating | IP54 (laser scanning head section) |
| Pollution degree | 2 |
| Overvoltage category | Ⅱ |
| Operating temperature | 0–45°C |
Packaging
Food & Beverage Industry — Laser Coding on Beverage Cans
A fiber laser coding solution for a 90,000-can-per-hour aluminum beverage line operating in humid production conditions.
Metal Parts
Metal Processing — Part Traceability and Permanent VIN Marking
A fiber laser traceability solution for automotive metal parts, VIN codes and DataMatrix identification in harsh environments.
Questions about FF20-Ultra Fiber Laser Coding Machine.
Review machine selection, integration, sample testing and service information before requesting a quote.
What materials can be marked with laser?
Fiber, UV and CO2 laser systems can mark metal, plastic, glass, paper, carton, cable, PCB and many packaging surfaces. The suitable laser type depends on the material and the required contrast.
Can laser marking create permanent codes?
Yes. Laser marking creates durable marks without ink. On many materials, the result is permanent, clear and suitable for traceability codes, serial numbers, logos and batch information.
Can you mark QR codes and barcodes?
Yes. Zertree machines can mark text, logos, QR codes, Data Matrix codes, barcodes, batch codes and expiry dates for packaging and industrial parts.
How do I choose the right laser marking machine?
Start with the material, code content, marking size, production speed and installation method. Zertree can then recommend fiber, UV, CO2, online, desktop, handheld or enclosed equipment.
What is the difference between fiber, UV and CO2 laser marking?
Fiber laser is commonly used for metal and some hard plastics. UV laser is suitable for low-heat, high-contrast marking on plastic, glass and packaging. CO2 laser is often used for paper, carton, wood, leather and some organic materials.
Can the machine connect with a production line?
Yes. Online laser coding machines can be integrated with conveyors, sensors, fixtures and production-line control systems for continuous flying marking.
Can I send samples before purchase?
Yes. You can send material samples and marking content. Zertree will test contrast, readability, marking speed and code quality before quotation.
What information should I provide for sample testing?
Please provide material type, surface treatment, marking size, code content, expected depth or contrast, production speed and any scanning requirements.
Can you help confirm code readability?
Yes. For QR codes, barcodes and traceability marks, sample testing can confirm contrast, size, readability and repeatability before machine selection.
Do you provide technical support and after-sales service?
Yes. Zertree provides machine selection support, sample verification, remote guidance, technical service and spare parts support for industrial marking projects.
How fast can Zertree review an RFQ?
For clear project information, the team usually reviews the request quickly and can help prepare a practical recommendation within 24 hours.
What should I include when requesting a quote?
Include your material, marking content, marking area, production speed, installation space, preferred machine style and sample photos if available.
