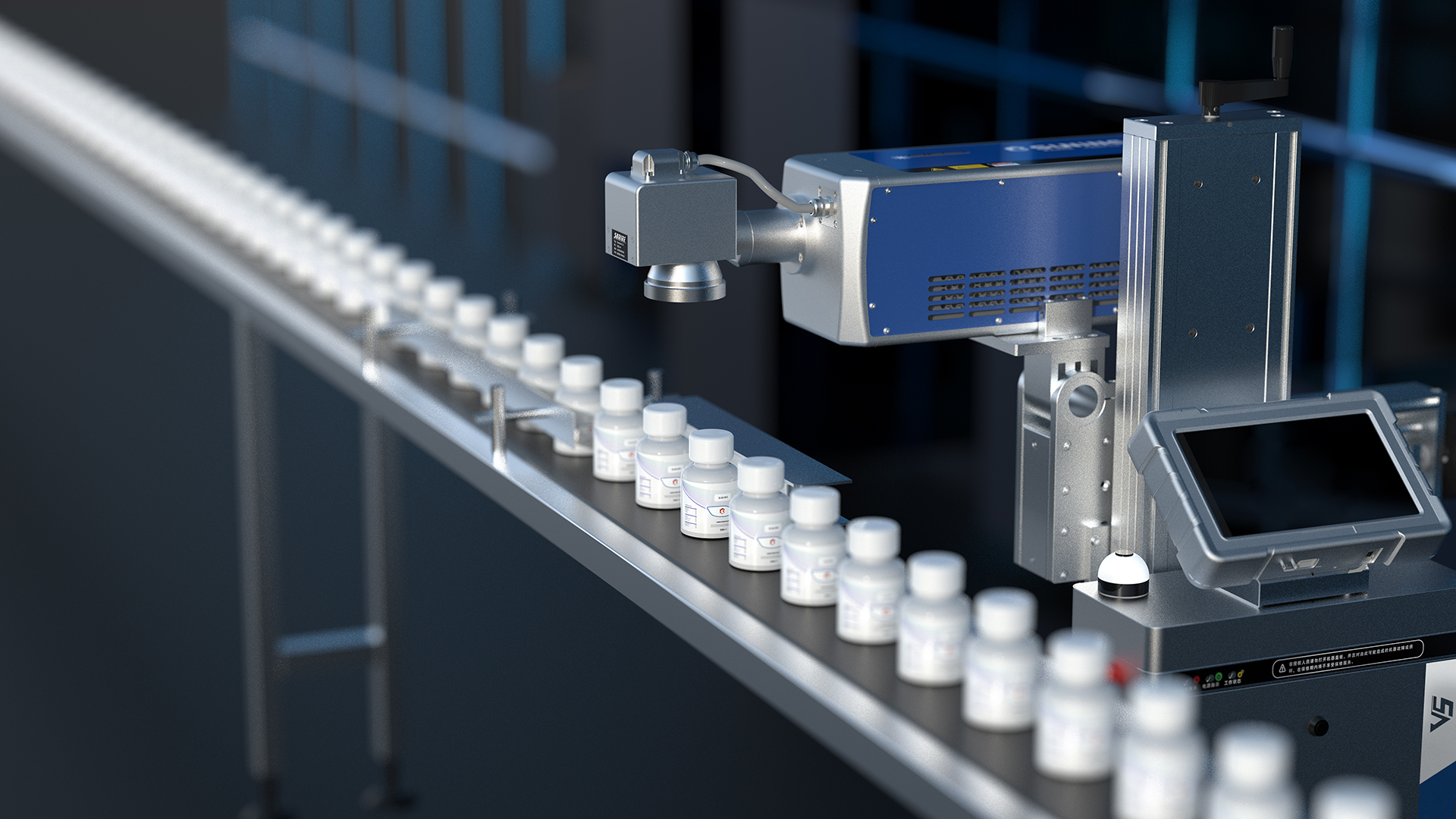

UF5P-A-Ultra UV Laser Coding Machine
UF5P-A-ultra UV Laser Coding Machine
adopts a nanosecond UV laser source and an advanced galvanometer scanning system, ensuring outstanding coding quality and high-speed performance. The marking speed can reach up to 18,000 mm/s, easily meeting the demands of high-volume and high-speed production lines.
The machine supports both standard communication protocols and custom communication protocols, enabling fast integration with MES, ERP, PLC, packaging equipment, and automated production lines. This allows intelligent linkage control and meets the digital upgrade requirements of modern factories.
Equipped with a high-performance processing core, it can quickly handle massive data, variable QR Code codes, barcodes, serial numbers, production dates, and complex graphic content. Printing results are clear and precise, ensuring long-term stable operation.
Core specification reference.
Final configuration depends on material, marking field, code size, cycle time and integration method.
| Model | UF5P-A-ultra |
|---|---|
| Material of the entire unit | Anodic alumina structure (light path), stainless steel (control box) |
| Type of Laser | Nanosecond Ultraviolet Laser Generator |
| Laser Power | 5W |
| Laser Wavelength | 355nm |
| Print Method | High-precision two-dimensional scanning method |
| Marking Speed | ≤18000mm/s |
| Master Control | Highly integrated motherboard, 10-inch external touchscreen, V5 operating system |
| Operating System | Linux |
| Cooling System | Air-cooled at room temperature |
| Spray Printing Line Type | Dot-and-vector all-in-one printer (capable of printing both dot and vector graphics) |
| Mirror Size | Standard specifications: 8.5mm |
| Spray Printing Range | Standard size: 110mm × 110mm; Maximum optional size: 600mm × 600mm |
| Location Mode | Directional red light positioning with automatic focusing |
| Number of Characters to Carve | Any row within the coding range |
| Production Line Speed | 0-300m/min (The exact speed depends on the product material and print content) |
| Supported Languages | Simplified Chinese, Traditional Chinese, English, Korean, Russian, German, Spanish, French, Italian, Japanese, Portuguese, Turkish, Arabic, Persian, and more |
| File Format | BMP/DXF/HPGL/JPEG/PLT |
| Barcode/QR Code | Code128A, Code128B, Code128C, Code39, Code93, EAN13, PDF417, 01 Code; QR, DM, GS1-DM, AztecCode, HanxinCode, DotCode, etc. |
| Power Supply | 220V |
| Maximum Power Consumption | ≤400W |
| Net Weight of the Machine (Main Unit + Control Box) | 40kg |
| Optical Path Dimension | 706mmX178mmX170mm |
| Control Box Dimensions | 492mmX383mmX160mm |
| Interface | RS-232C/USB2.0/Ethernet, I/O |
| External Protection Rating | IP54 (laser vibration lens section) |
| Class of Pollution | 2 |
| Overvoltage Category | Ⅱ |
| Adaptation Temperature | 5-40℃ |

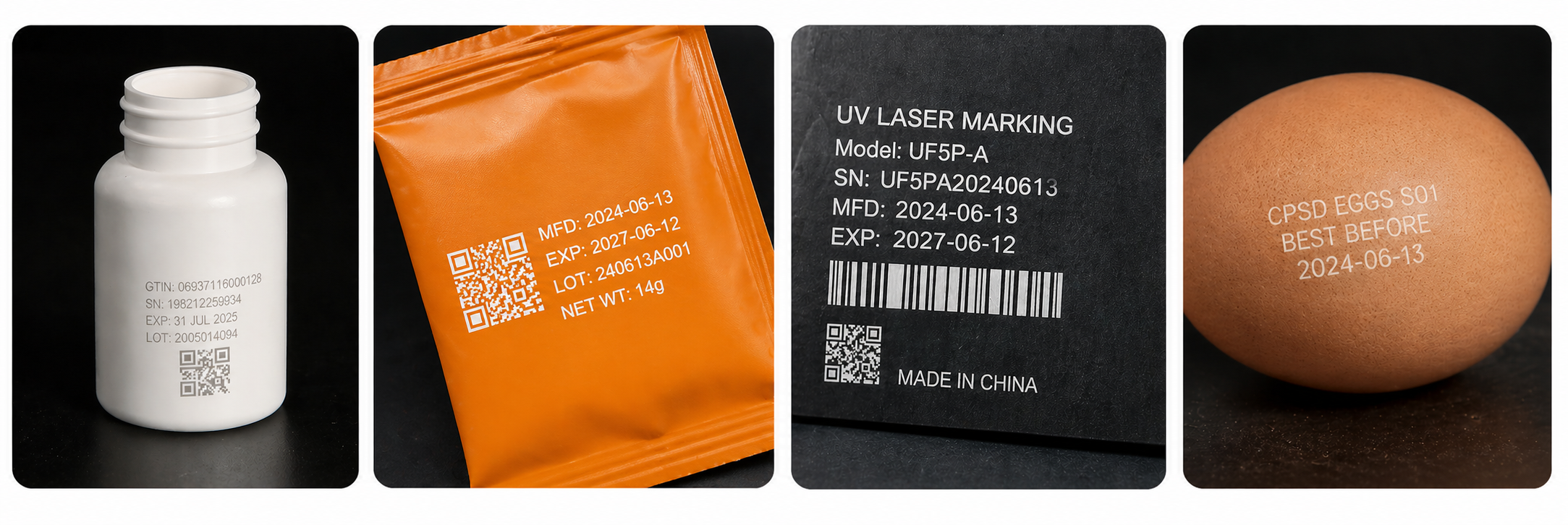

Pharmaceuticals & Medical Devices
Pharmaceutical & Medical Devices — UDI-Compliant Laser Marking
Fiber and UV laser platforms create permanent UDI and traceability marks on instruments, implants and sensitive pharmaceutical packaging.
Electronics
Laser Marking for IC Chips and Precision Components
UV cold marking creates micron-scale, high-density traceability codes on IC chips and sensitive precision components without thermal damage.
Packaging
Flexible Packaging & Heat-Sensitive Films — UV Cold Marking
UV cold marking creates clear batch and traceability codes on heat-sensitive composite films without warping or barrier-layer damage.
Plastics
Barcode and batch coding on an HDPE pipe
A high-contrast barcode, specification and production date are permanently marked on an extruded pipe.
Rubber & Cables
QR and lot marking on an EPDM rubber hose
A compact traceability code and lot identifier are permanently marked on a matte black industrial hose.
Plastics
Manufacturing and expiry dates on a PP bottle cap
Fine date information remains clear across the ribbed sidewall of a tamper-evident closure.
Paper & Packaging
Manufacturing and lot coding on a snack carton
English manufacturing data is permanently marked on a bright coated-paper food carton.
Rubber & Cables
Traceability coding on a white industrial cable
Cable identification and lot data remain clear along a narrow white cable jacket.
Plastics
Lot and expiry coding on a cosmetic PP cap
Compact traceability data is marked directly onto a matte cosmetic closure without labels or ink.
Paper & Packaging
Lot, manufacturing and expiry coding on a pharma carton
Three-line English traceability data remains legible on a blue pharmaceutical folding carton.
Rubber & Cables
Serial-number marking on a black cable assembly
A serial number and QC status are marked directly on a flexible black industrial cable jacket.
Questions about UF5P-A-Ultra UV Laser Coding Machine.
Review machine selection, integration, sample testing and service information before requesting a quote.
What materials can be marked with laser?
Fiber, UV and CO2 laser systems can mark metal, plastic, glass, paper, carton, cable, PCB and many packaging surfaces. The suitable laser type depends on the material and the required contrast.
Can laser marking create permanent codes?
Yes. Laser marking creates durable marks without ink. On many materials, the result is permanent, clear and suitable for traceability codes, serial numbers, logos and batch information.
Can you mark QR codes and barcodes?
Yes. Zertree machines can mark text, logos, QR codes, Data Matrix codes, barcodes, batch codes and expiry dates for packaging and industrial parts.
How do I choose the right laser marking machine?
Start with the material, code content, marking size, production speed and installation method. Zertree can then recommend fiber, UV, CO2, online, desktop, handheld or enclosed equipment.
What is the difference between fiber, UV and CO2 laser marking?
Fiber laser is commonly used for metal and some hard plastics. UV laser is suitable for low-heat, high-contrast marking on plastic, glass and packaging. CO2 laser is often used for paper, carton, wood, leather and some organic materials.
Can the machine connect with a production line?
Yes. Online laser coding machines can be integrated with conveyors, sensors, fixtures and production-line control systems for continuous flying marking.
Can I send samples before purchase?
Yes. You can send material samples and marking content. Zertree will test contrast, readability, marking speed and code quality before quotation.
What information should I provide for sample testing?
Please provide material type, surface treatment, marking size, code content, expected depth or contrast, production speed and any scanning requirements.
Can you help confirm code readability?
Yes. For QR codes, barcodes and traceability marks, sample testing can confirm contrast, size, readability and repeatability before machine selection.
Do you provide technical support and after-sales service?
Yes. Zertree provides machine selection support, sample verification, remote guidance, technical service and spare parts support for industrial marking projects.
How fast can Zertree review an RFQ?
For clear project information, the team usually reviews the request quickly and can help prepare a practical recommendation within 24 hours.
What should I include when requesting a quote?
Include your material, marking content, marking area, production speed, installation space, preferred machine style and sample photos if available.
